Products:
Filtration Systems

AquaRevival’s patented regenerative media filtration systems offer the very best in filtration technology: removing particulates down to sub-micron levels through sustainable processes and worry-free automation.

The choice to upgrade from sand filtration is clear:

  • Save water, energy, and chemicals by cutting wasteful backwashing
  • Reduce footprint of mechanical space
  • Clearer, cleaner water with significant cost-savings

What’s more, AquaRevival’s patented design has improved upon regenerative media technology to offer the best system in the industry.

IAAPA Expo Brass Ring Award winner logo

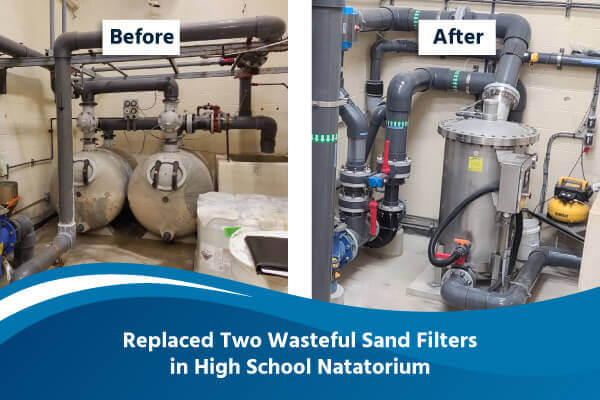

Before and after: two sand filters replaced in a high school natatorium

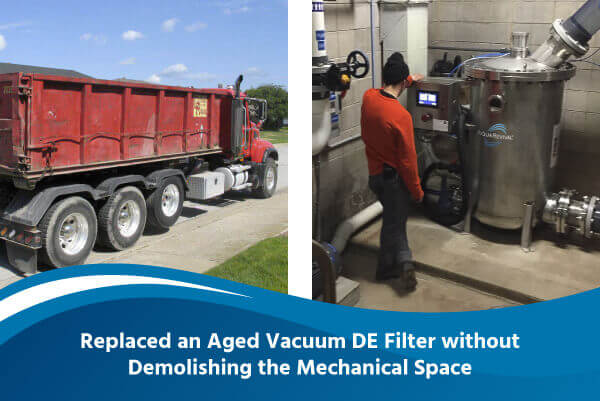

Aged vacuum DE filter replaced without demolishing the mechanical space

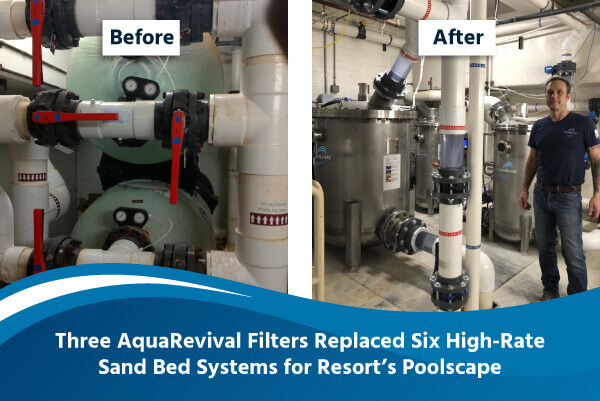

Before and after: three AquaRevival filters replaced six sand bed systems at a resort

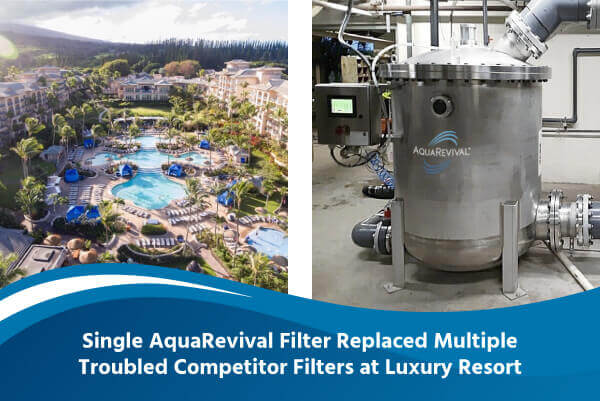

One AquaRevival filter replaced several competitor filters at a luxury resort

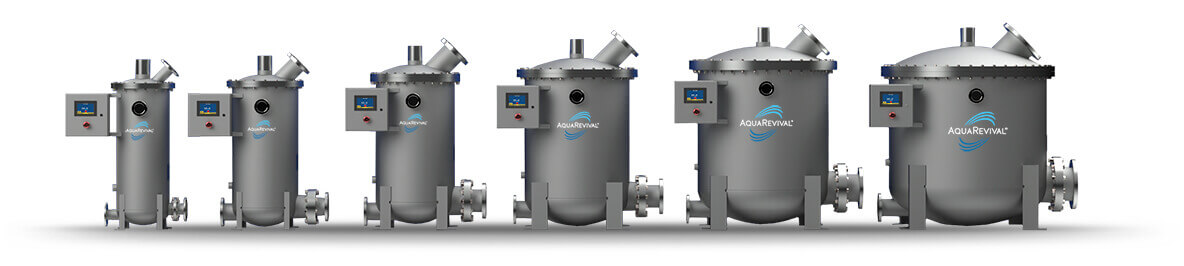

Lineup of AquaRevival regenerative media filters from smallest to largest

Drinking-Water Level Filtration

Our filtration technology produces water so pure it meets the strict NSF 61 standard for food and beverage applications.

Broadest Filtration Range

Our flow rates range from 50 GPM to 6,600 GPM. No other system comes close.

Smallest Footprint

AquaRevival filters offer the lowest headroom in the industry, saving construction costs in mechanical rooms, and making retrofits simple. All standard units are built to fit through an 80” high door opening upright.

Stainless Steel Construction in USA

Our filters are constructed of ASME Section VIII code certified 304L stainless steel pressure vessels… all 100% Made in America.

Customizable Features

The panel location and the discharge connection are both configurable on the tank, giving you the flexibility to fit the parameters of your mechanical space.

Best Warranty in the Industry

Because our filters are not made of carbon steel that can rust and a lining that can fail, we back our product with a 15-year tank warranty.



 Connections (in)Model DataCapacity & RatingDimensions (in)Downloads
ModelInfluent/
Effluent
DrainPrecoat
Piping
Media
(lb)
Tank Ship
Wt (lb)
Tank
Footprint (ft²)
Filter
Area (ft²)
Flow
Range (gpm)
Tank
Gal
HeightDiameterInletDrainMedia
Fill
Spec
Sheet
Design
File
Model
File
BSG 20444114502.215050-4508264.1207.55.415.5PDF download iconDWG CAD drawing download iconRevit RFA family download icon
BSG 20T444154792.220050-60010976.1207.55.415.5PDF download iconDWG CAD drawing download iconRevit RFA family download icon
BSG 25664197073.425685-76812966.7258.36.316.3PDF download iconDWG CAD drawing download iconRevit RFA family download icon
BSG 25T664257433.434085-102017178.7258.26.216.3PDF download iconDWG CAD drawing download iconRevit RFA family download icon
BSG 308662910414.9381127-114319272.23010.36.318.5PDF download iconDWG CAD drawing download iconRevit RFA family download icon
BSG 30T8663910884.9508127-152425584.23010.36.318.5PDF download iconDWG CAD drawing download iconRevit RFA family download icon
BSG 408665313878.7705235-211535475.24011.96.920.0PDF download iconDWG CAD drawing download iconRevit RFA family download icon
BSG 40T8667114258.7940235-282047087.24011.96.920.0PDF download iconDWG CAD drawing download iconRevit RFA family download icon
BSG 50106884193313.61118373-335455477.65015.07.023.0PDF download iconDWG CAD drawing download iconRevit RFA family download icon
BSG 50T1068112199213.61488373-446473689.65015.07.023.0PDF download iconDWG CAD drawing download iconRevit RFA family download icon
BSG 601268125277719.61667557-500181877.96016.47.424.5PDF download iconDWG CAD drawing download iconRevit RFA family download icon
BSG 60T1268167288219.62222557-6666108888.96016.47.424.5PDF download iconDWG CAD drawing download iconRevit RFA family download icon

Request a Quote

Related Products

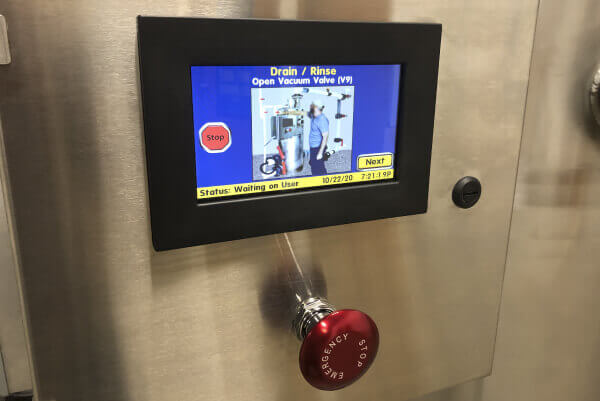

Automated controller screen and emergency stop on a filter tank

Automated Controllers

Our easy-to-use touch-screen controllers come standard on every filter, making automation and monitoring simple and intuitive. These systems are also available as standalone products for retrofits and upgrades of existing competitive filters.
Visit product page for more details.

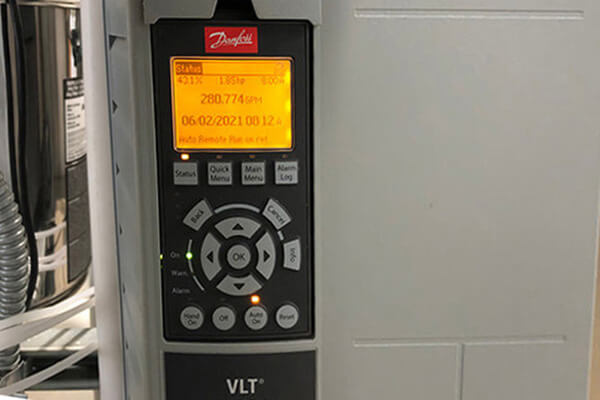

Danfoss VLT keypad display during VFD programming

Free* Danfoss Aqua Drive VFD Programming

This is a several thousand dollar savings over calling in a VFD technician, and further demonstrates why AquaRevival is the leader in delivering value.
Visit product page for more details.

Patented Design covered by U.S. Patents 10,406,458; 10,814,255; 10,814,256; 10,850,216; 10,981,091; 11,065,566; and 11,167,266 with others pending, along with foreign coverage in the E.U., ME, SEA and elsewhere.

NSF/ANSI 372 certified and conforms with the lead content requirements for “lead free” plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act.
